The KJG hollow paddle dryer provides continuous drying by indirect heat transfer in a horizontal, mechanically agitated vessel. Its paddle-shaped agitators mix the material while supplying heat through their surfaces.

Longxin has refined the paddle dryer structure through years of manufacturing and commissioning experience, with a focus on practical operation and stable performance.

Share:

Inquire Now

Indirect Drying for Powders, Granules, Filter Cakes and Slurries

The Longxin KJG hollow paddle dryer removes moisture or solvent through heated metal surfaces while twin paddle shafts agitate the material. It is a horizontal dryer designed primarily for continuous operation, with process configurations selected for the feed and required final product.

Heat is supplied through the vessel jacket, hollow shafts and paddles. Because a large stream of hot air is not needed to deliver the drying heat, the process can reduce the gas volume requiring downstream treatment. A small sweep-gas flow may be used where needed to remove vapor.

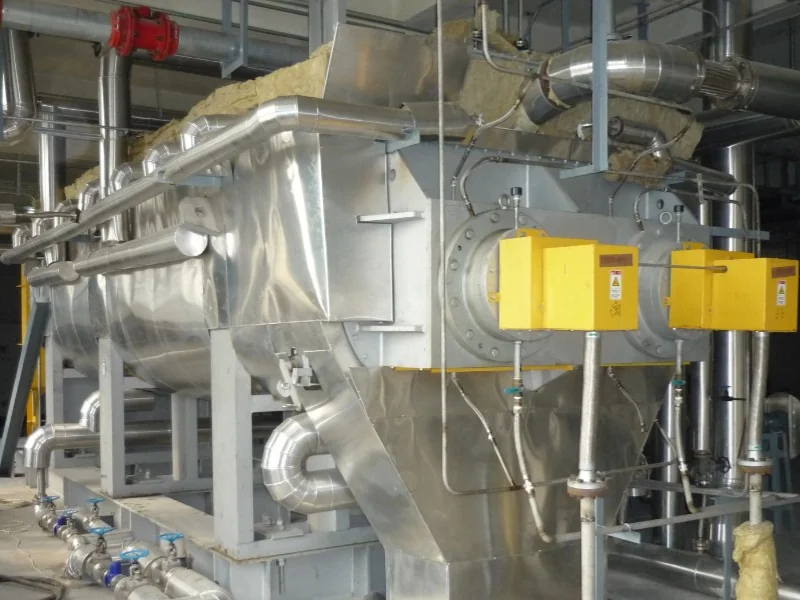

Installed Longxin KJG hollow paddle dryer with process piping and drive guard
Installed Hollow Paddle Dryer

Working Principle and Main Structure

The dryer consists of a jacketed trough with a W-shaped cross-section, a cover, two hollow paddle shafts, end plates, rotary joints, flexible connections and a drive system. Steam, thermal oil or hot water flows through the selected heating circuits without directly contacting the product.

  1. Feed enters the trough: the inlet arrangement distributes wet material into the working zone.
  2. Paddles mix and transfer heat: closely spaced, wedge-shaped hollow paddles provide heat-transfer area within the material bed.
  3. Surface contact is renewed: as the paddles rotate, material moves across their inclined faces. Scrapers lift deposits from the bottom of the trough and help limit stagnant zones.
  4. Vapor is removed: the vapor-handling equipment is selected for the moisture, solvent and operating pressure.
  5. Product is discharged: the feed, drying and discharge arrangements maintain material flow, with residence time adjusted for the required drying duty.

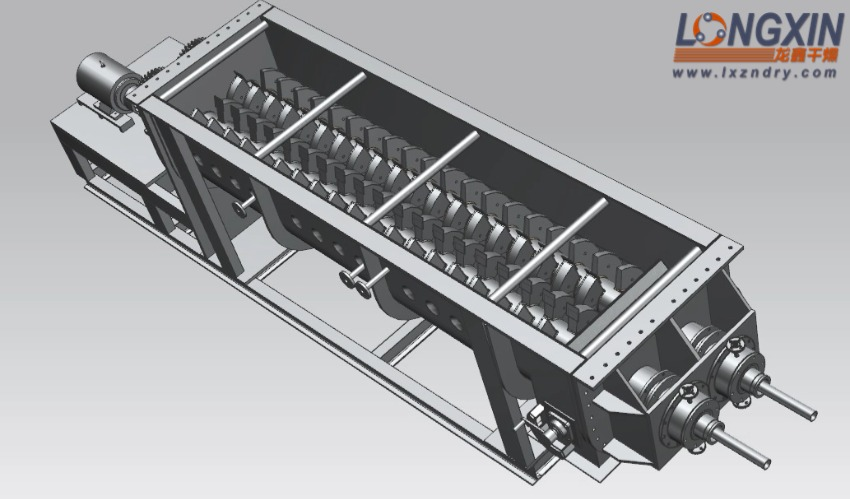

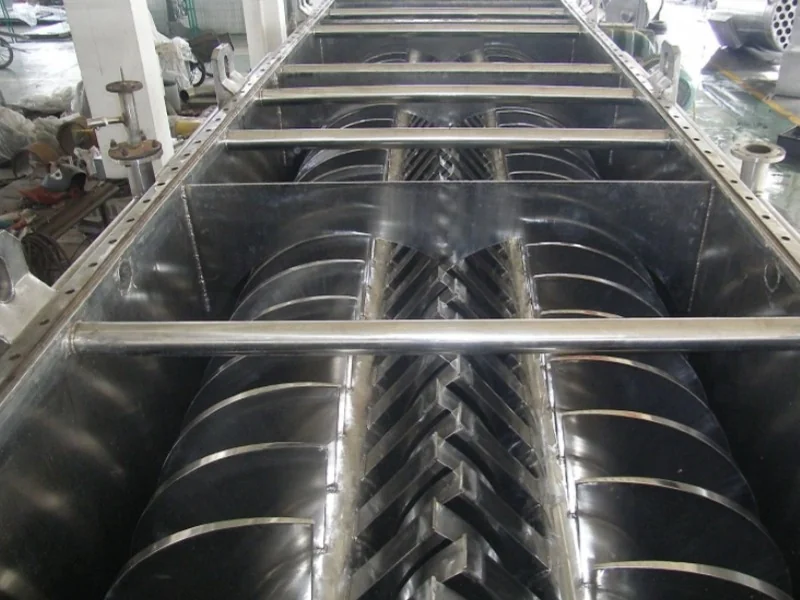

Cutaway of a KJG paddle dryer showing two paddle shafts in a horizontal trough
Twin-Shaft Hollow Paddle Dryer Structure

Key Features

  • Efficient use of heating energy: conductive heating reduces the heat carried away by a large drying-air stream. The compact arrangement also limits exposed surface area.
  • High heat-transfer area per unit volume: hollow paddles provide substantial heating surface within a compact vessel, helping reduce installation space.
  • Flexible thermal operation: steam, thermal oil and hot water can be used for heating. Cooling water or brine can be used when the equipment is configured for cooling.
  • Separation of utilities and product: the heating medium remains inside the jacket and rotating heat-transfer surfaces. Steam condensate can be returned through a suitable utility system.
  • Agitation for difficult materials: the drive and paddle arrangement can be selected to handle the resistance encountered as wet material passes through a sticky or plastic phase.
  • Application-specific shaft speed: rotational speed is selected for the feed behavior, heat-transfer requirement and wear considerations.
  • Continuous or batch arrangements: the operating mode, vapor system and discharge arrangement are matched to the process.

Process Arrangements

Atmospheric Drying with Vapor Treatment

The illustrated atmospheric arrangement connects the paddle dryer to a cyclone, wet scrubber and exhaust fan. The vapor-treatment system is selected for the entrained particles and vapor composition.

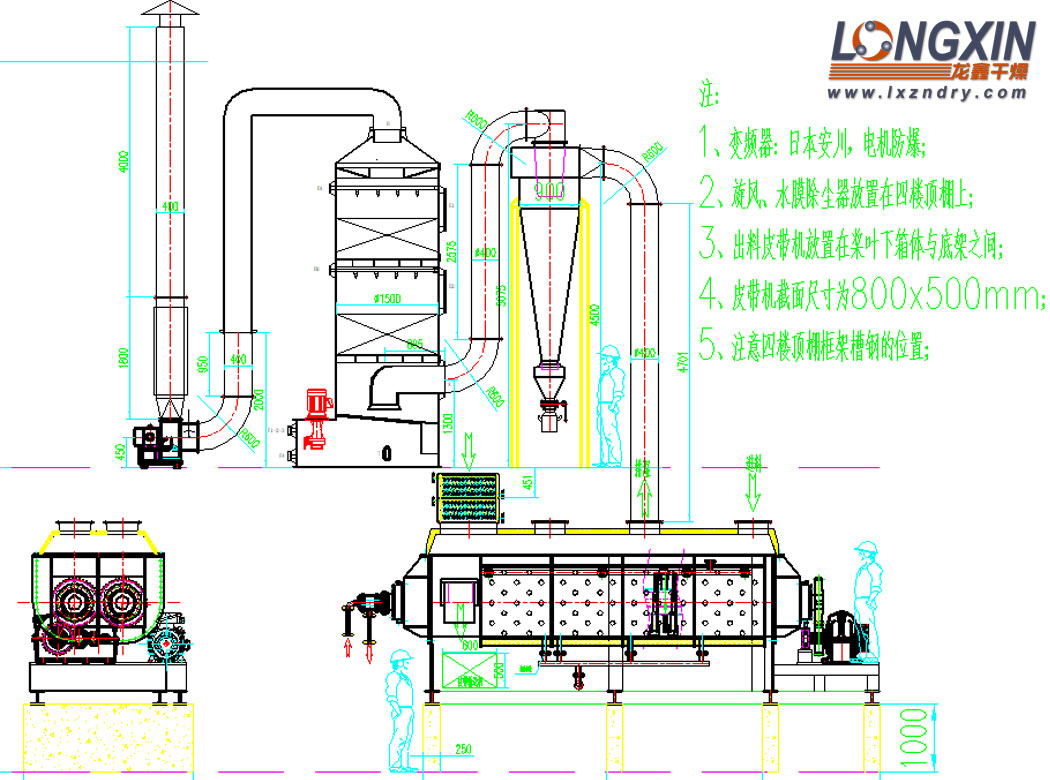

Paddle dryer installation drawing with cyclone, wet scrubber and exhaust fan
Atmospheric Drying System Layout

Vacuum Drying and Solvent Recovery

A suitably enclosed dryer can be integrated with condensation, a liquid receiver and a vacuum system when the process calls for reduced-pressure drying or solvent recovery. The equipment configuration is selected for the actual product and solvent.

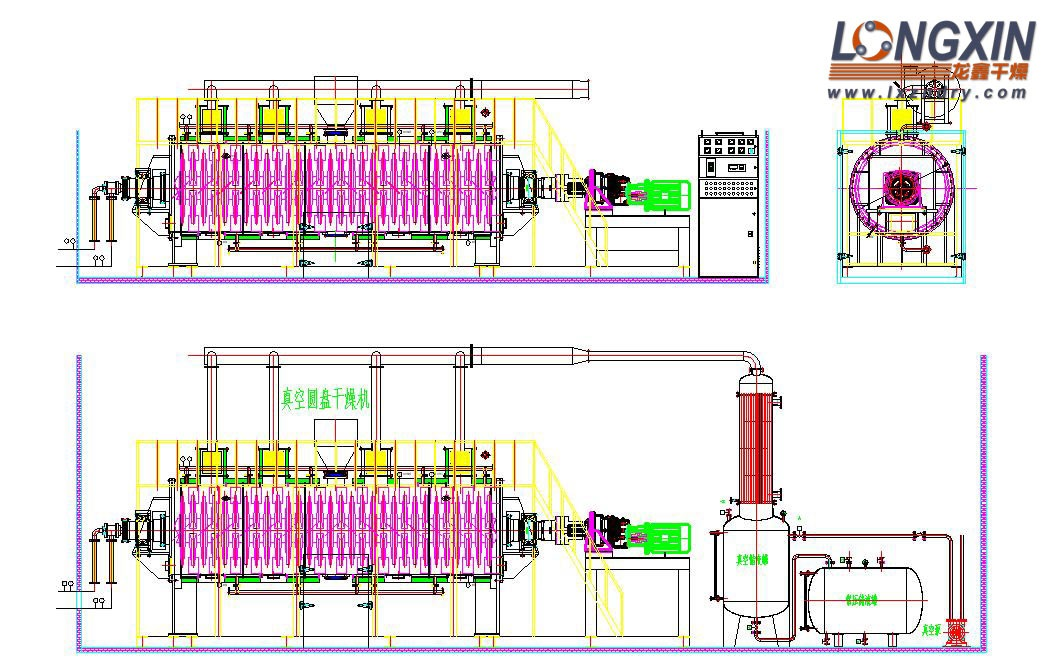

The reference drawing below illustrates this vapor-handling arrangement on a disc-type vacuum dryer. It shows the condenser, receiver and vacuum pump; the KJG twin-paddle structure is shown separately above.

Reference drawing of a vacuum disc dryer with condenser, receiver and vacuum pump
Vacuum Disc Dryer Reference Layout

Paddle and Disc Dryers in Series

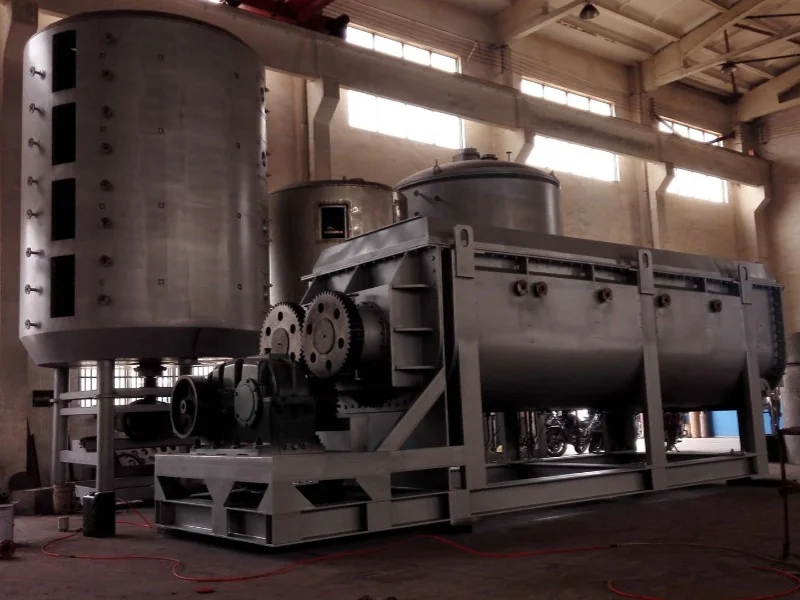

A paddle dryer can be combined with a vertical disc dryer for staged material treatment. The supplied process drawing shows feeding, transfer between stages and the associated vapor systems. The gallery also includes a photograph of an installed line.

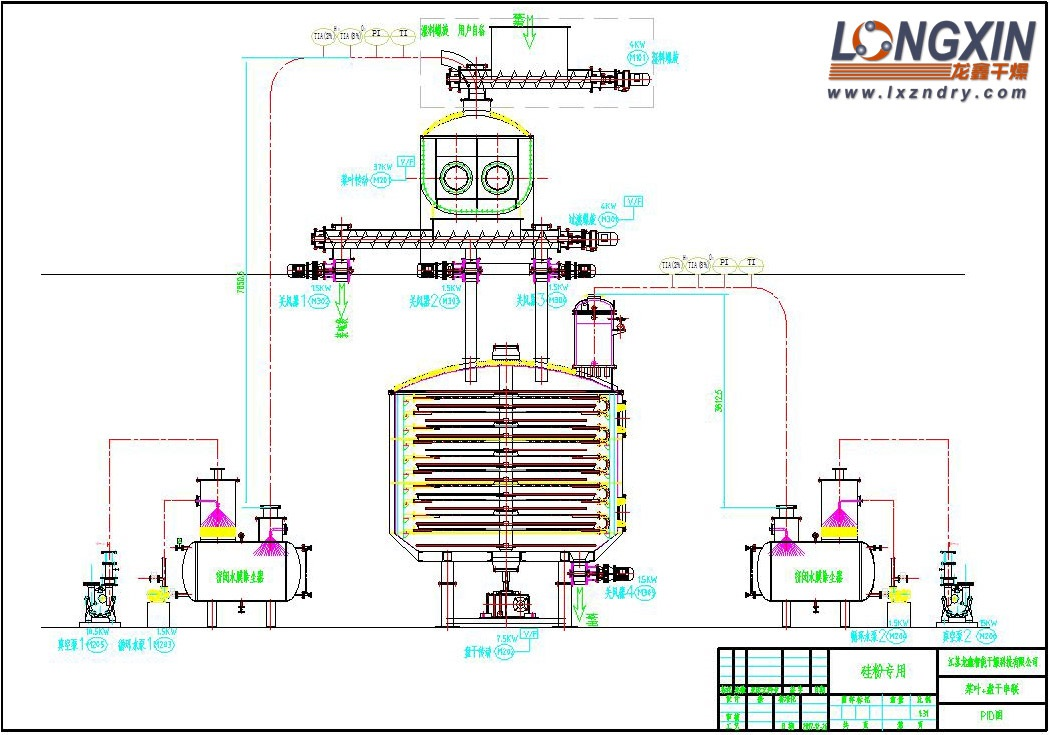

Process diagram showing a paddle dryer connected to a vertical disc dryer
Paddle and Disc Dryers in Series

Applications Beyond Drying

  • Drying: powders, granules, filter cakes and slurries in chemical, petrochemical, dye, food, pharmaceutical, agrochemical and industrial sludge applications.
  • Cooling: soda ash, titanium dioxide, ferronickel alloy powders and other suitable particulate materials, using an appropriate cooling medium.
  • Low-temperature calcination: suitable duties include converting calcium sulfate dihydrate to hemihydrate and sodium bicarbonate to soda ash.
  • Heating and melting: indirect heat transfer and mixing can be used for suitable thermal treatment duties.
  • Reaction and heat treatment: selected compound-fertilizer, modified-starch and food-processing applications can use the unit for controlled heating and mixing.

For heat-sensitive, oxidation-sensitive or flammable materials, the operating temperature, pressure, atmosphere and vapor-recovery equipment are specified for the application. Food sterilization and other product-critical heat treatments require a process matched to the required temperature and residence time.

Equipment and Component Gallery

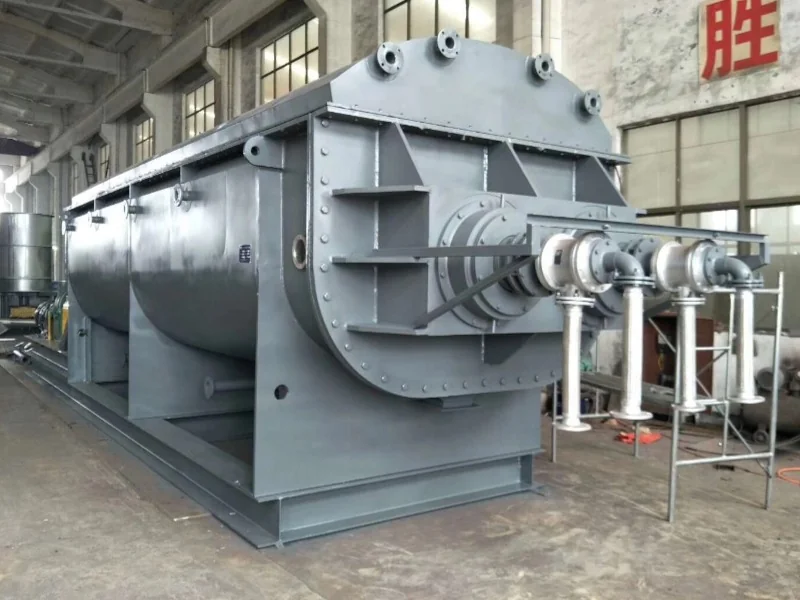

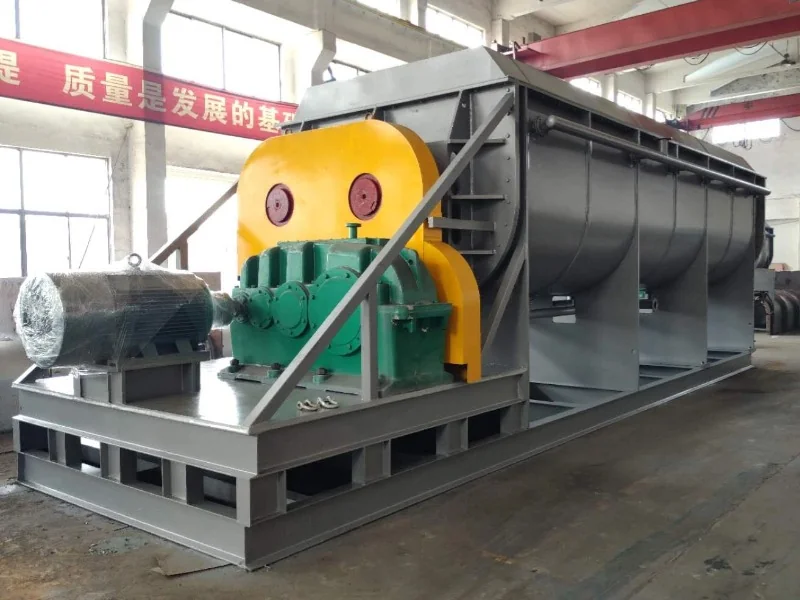

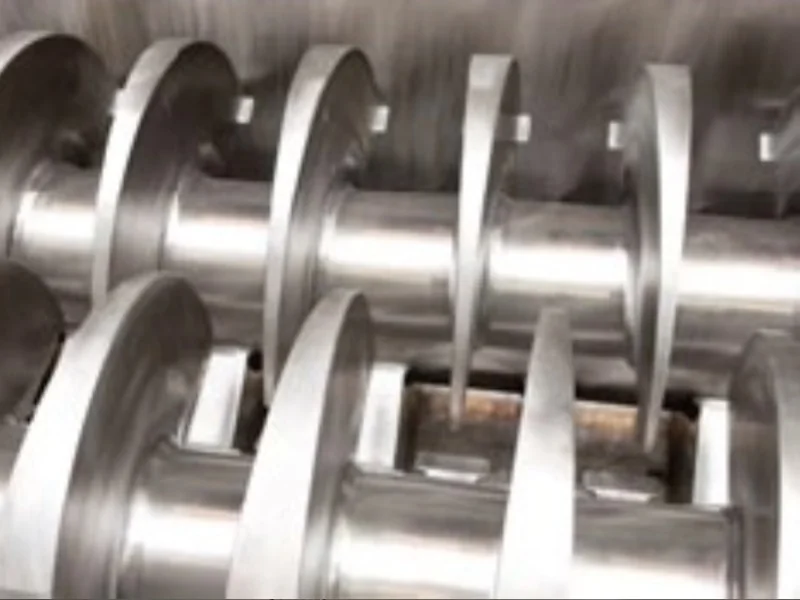

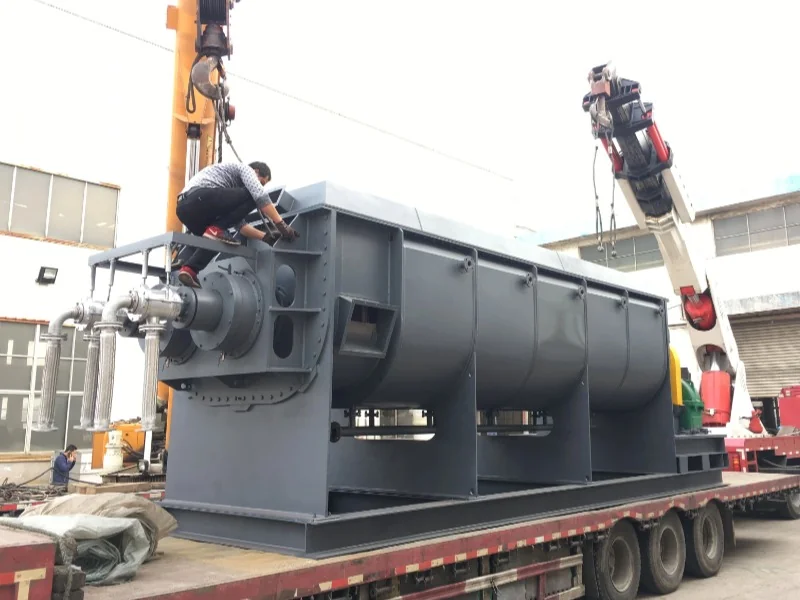

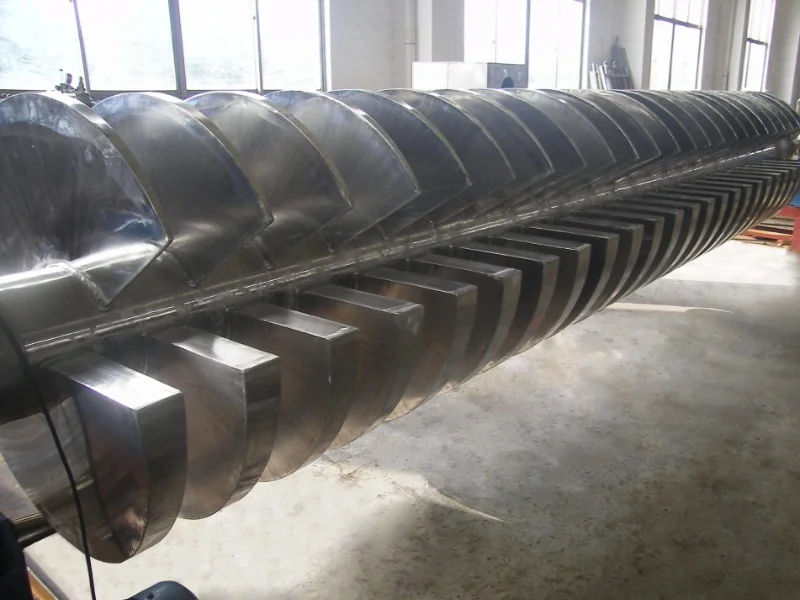

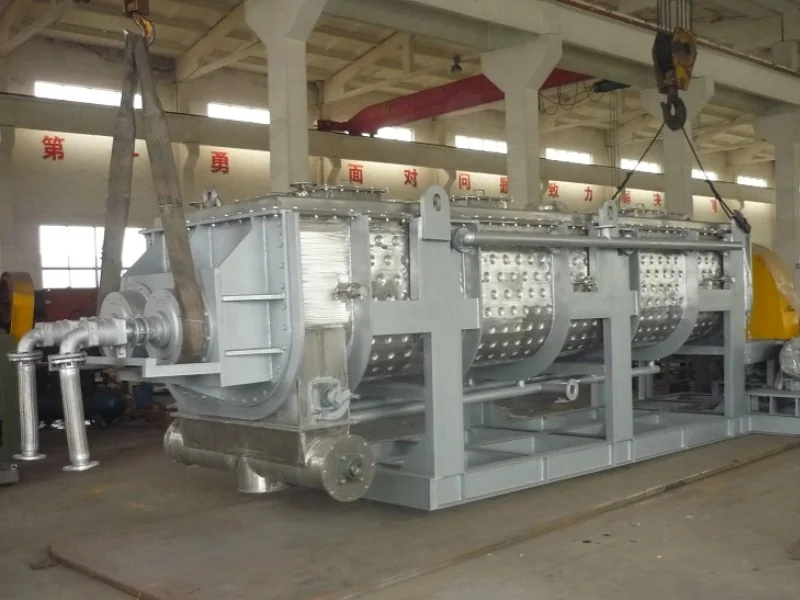

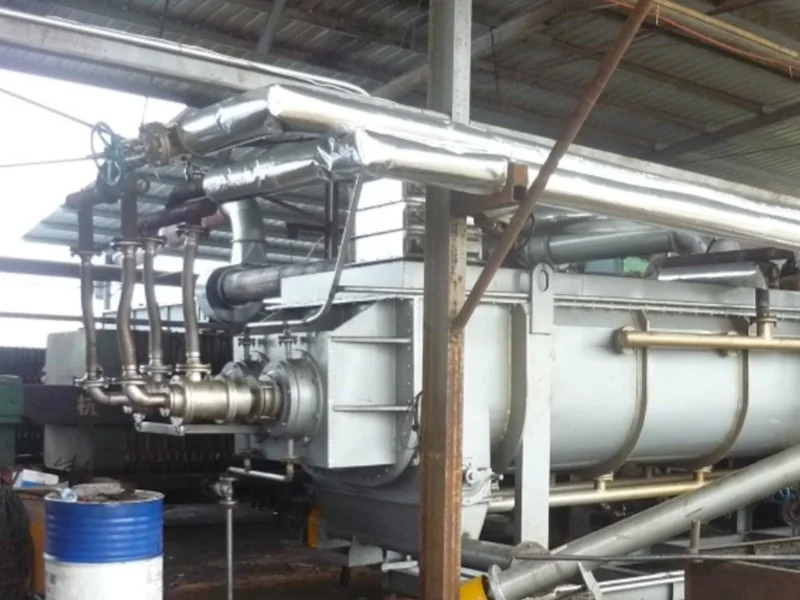

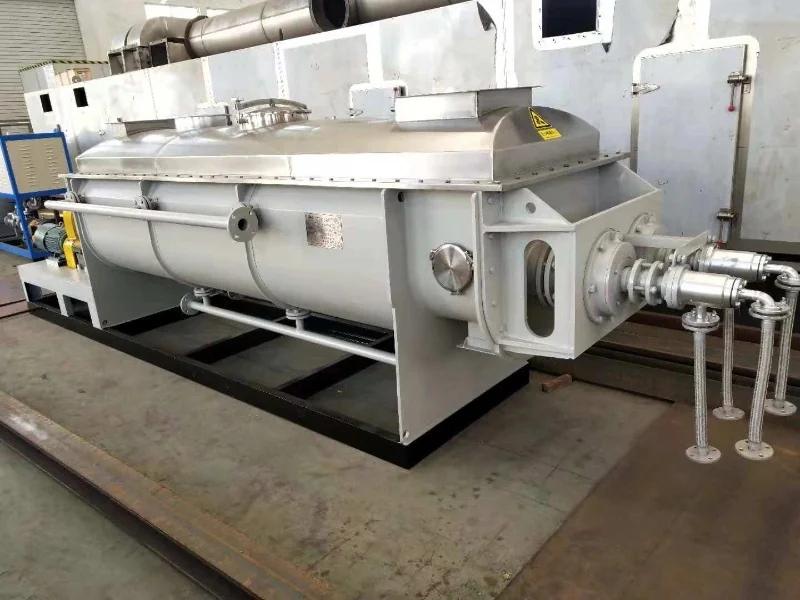

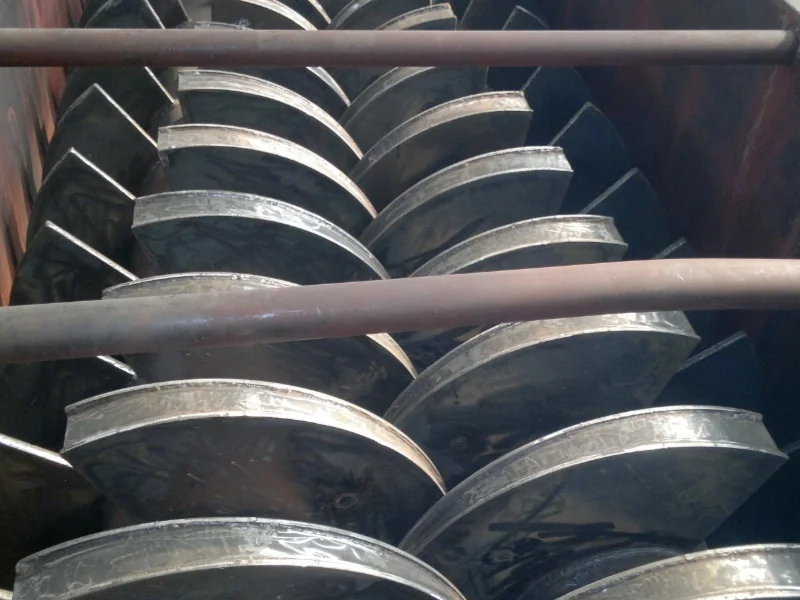

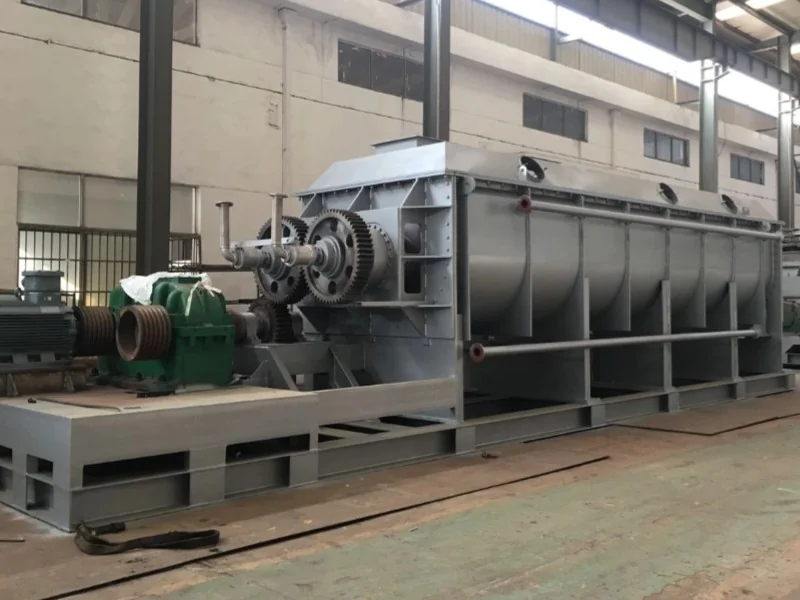

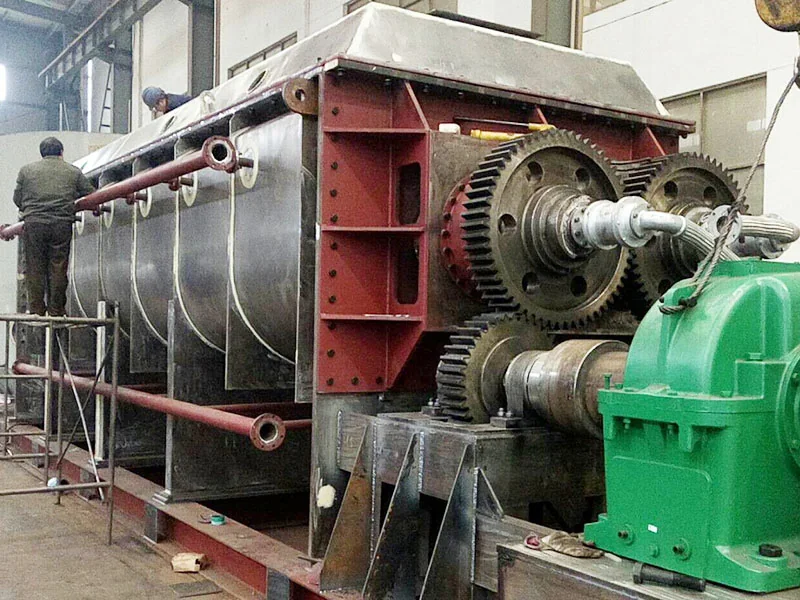

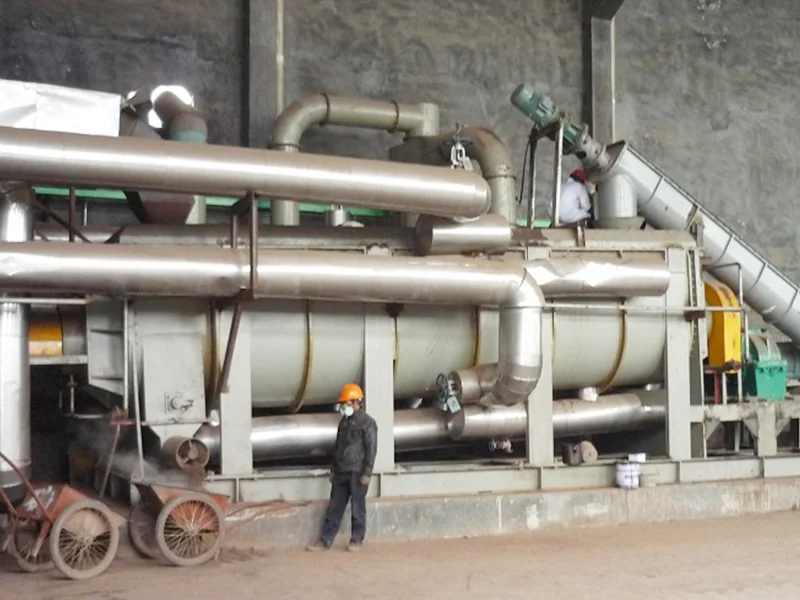

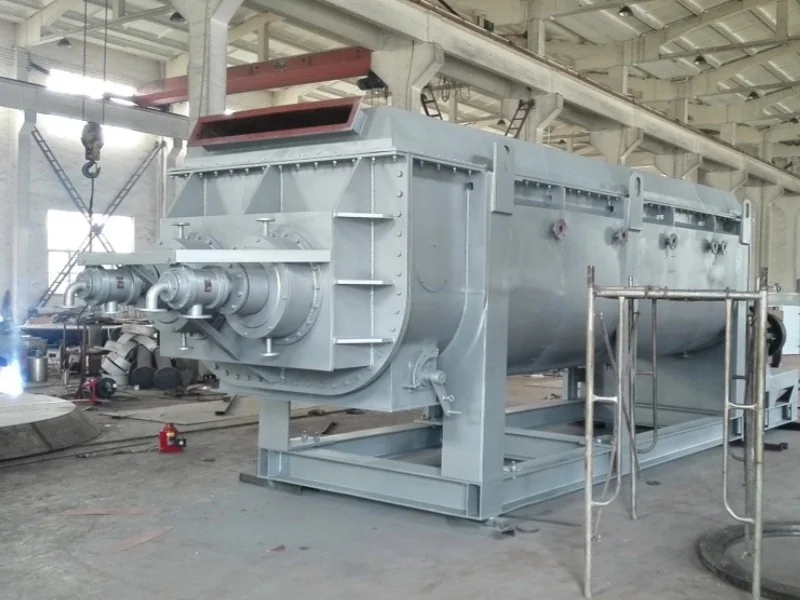

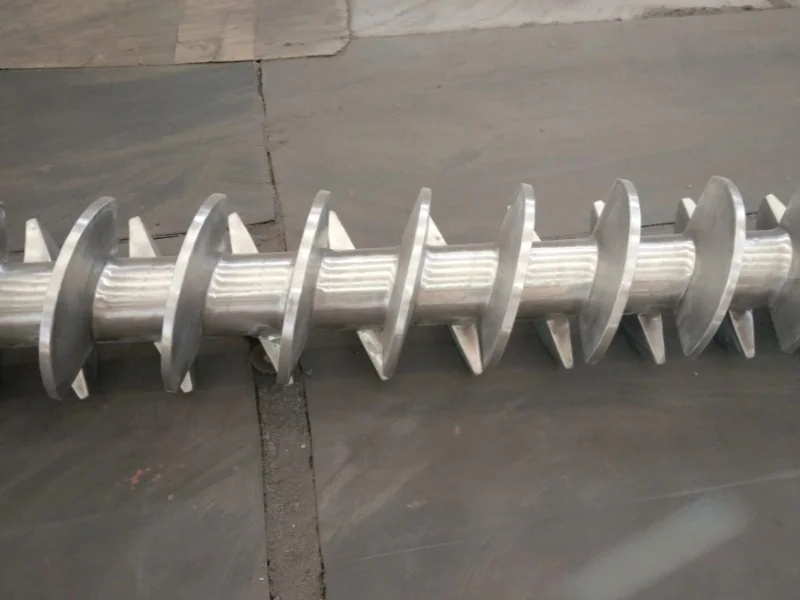

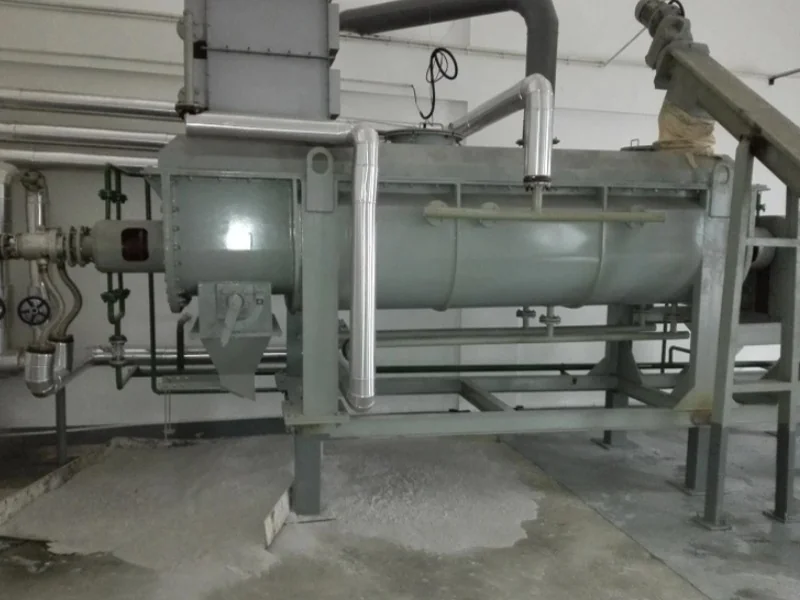

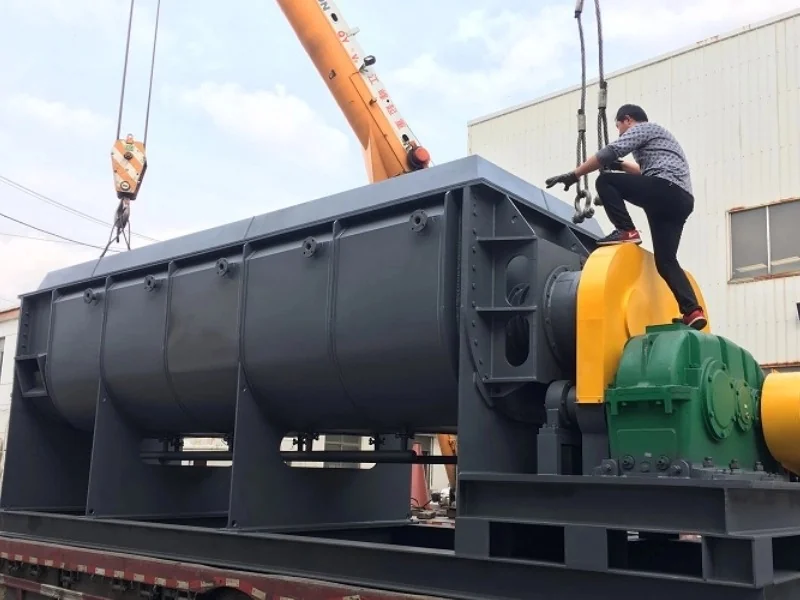

The gallery includes atmospheric and vacuum paddle dryers, installations identified as KJG-15 through KJG-260, a paddle-and-disc drying line, and five views of paddle shafts and internal assemblies. The model labels identify the photographed equipment; they do not by themselves specify throughput.

Select a Paddle Dryer for Your Material

Provide the material composition, feed rate, initial and final moisture or solvent content, bulk density, particle size, viscosity and behavior through the sticky phase. Include the allowable product temperature, heating utilities, operating pressure, vapor-treatment or solvent-recovery requirements, contact-material specification and available installation space.

Operating Specifications

The supplied technical schedule uses JYG model designations for this paddle-dryer range. Those identifiers are retained below; confirm the applicable model and configuration when selecting equipment.

Model Heat-transfer area (m²) Working volume (m³) Shaft speed (rpm) Motor power (kW)
JYG3 3 0.06 15-30 2.2
JYG9 9 0.32 10-25 4
JYG13 13 0.59 10-25 5.5
JYG18 18 1.09 10-20 7.5
JYG29 29 1.85 10-20 11
JYG41 41 2.8 10-20 15
JYG52 52 3.96 10-20 30
JYG68 68 5.21 10-20 45
JYG81 81 6.43 5-15 55
JYG95 95 8.07 5-15 75
JYG110 110 9.46 5-10 95

Reference Dimensions

Dimensions are in millimeters. Letter references follow the supplied schedule and must be checked against the approved installation drawing.

Model Body width A Overall width B Dimension C Overall length D Inlet–outlet spacing E Center height F Overall height H
JYG3 306 736 1956 2972 1752 380 762
JYG9 584 841 2820 4876 2540 380 838
JYG13 762 1066 3048 5486 2768 534 1092
JYG18 940 1320 3328 5918 3048 610 1270
JYG29 1118 1474 4114 6808 3810 762 1524
JYG41 1296 1676 4724 7570 4420 915 1778
JYG52 1476 1854 5258 8306 4954 1066 2032
JYG68 1652 2134 5842 9296 5384 1220 2362
JYG81 1828 To be confirmed 6020 9678 5562 1220 2464
JYG95 2032 2438 6124 9704 5664 1220 2566
JYG110 2210 2668 6122 9880 5664 1220 2668

The JYG81 overall width B requires confirmation. Dimension C is retained by its drawing reference because the source repeats the body-width label for both A and C.

Steam Connections

Model Steam inlet N (in) Condensate outlet O (in)
JYG3 3/4 3/4
JYG9 3/4 3/4
JYG13 1 1
JYG18 1 1
JYG29 1 1
JYG41 1 1
JYG52 1½ 1½
JYG68 1½ 1½
JYG81 1½ 1½
JYG95 1½ 1½
JYG110 2 2

Working volume and heat-transfer area are equipment ratings, not guaranteed evaporation capacity. Throughput, residence time, final moisture and utility consumption depend on the material and operating conditions. Connection sizes are nominal; connection type is specified for the installation.
